Data Types

• Support sample data with the same or different start point and sample interval.
• Random distributed XY data given by x, y coordinates at each point or both together
• Static and dynamic data display.

Plot Types

• Multiple display format support: bar, curve, cross section, stack bar, trace, normalization and combination.
• Each curve has its own color, line type (solid, dash, dot, dash dot, area fill or invisible), line width, and more than 10 different symbol type for user to choose.
• Add drawing objects to any graph such as points (marker …), lines (fitting line, gradient line …), polygons, rectangles and ellipses.
• Single or multiple curve and axis display.
• Dynamic graph display.

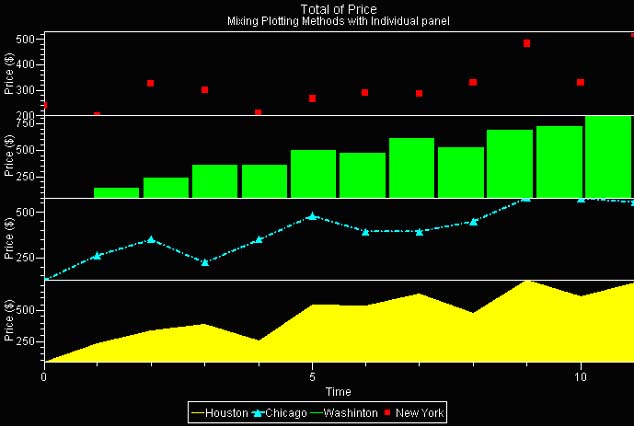

• Multiple panels each with different vertical scale.
• Vertical or horizontal layout.
• Support special background effect like transparency, Horizontal color fill, Vertical color fill, Diagonal up color fill, Diagonal down color fill. So user can drop on anywhere such as reports, web pages or pictures.

Mixed plotting example

Annotation Display example

Export and Print

• Print directly to printer
• Save as a vector file (windows enhanced metal file *.emf).

Curve

• Each curve could have markers and curve fitting parameters.
• Curve can be edited and created at real-time for the further analysis, such as: generate, modify, add noise, or drag and move curves.
• Multiple curves as related traces.
• Pick and copy curves and lines into clipboard and paste into another plot.
• Curve fitting, smooth, annotation, theoretical curve creation, real time math support.
• Support pre-defined fits or user defines fit line and gradient line, both can be rotating or parallel dragging.
• Each curve has statistic information: mean, median, mode, standard deviation, max value and min value.
• Each curve can be displayed in histogram mode.

Curve fitting example

Multiple fit lines example

Editing

• Point, marker, legend and d Axes.
• Data auto-interpolation for sample data.
• Curve fitting and gradient line.
• Generation, modification, noise addition.
• Curve rotating, moving and comparison.
• Big and small ticks, ticker on the axis has four modes: above/left, below/right, cross and invisible.
• Vertical line cursor for multiple sampled curve and point curve for any X-Y data.
• Cursor gives x y coordinates.
• Hit test to show each point, markers, etc.
• There are different markers: single, window, area, etc.
• Each marker has its own color, label and property.
• Markers could be added to the graph or curve at real-time or pre-defined.
• Legend support.
• Support irregular and interval region

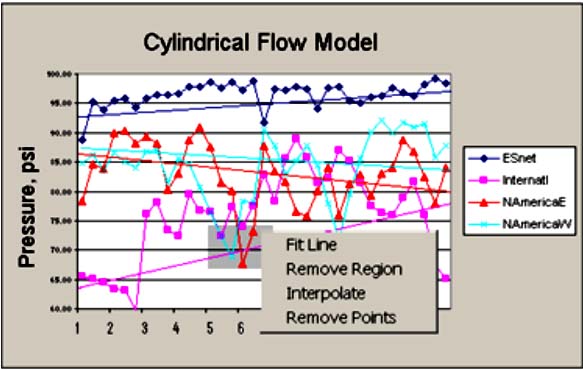

• Support customized user menu.

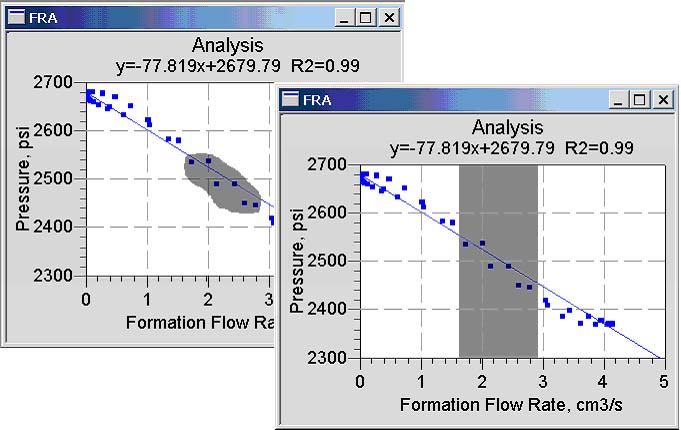

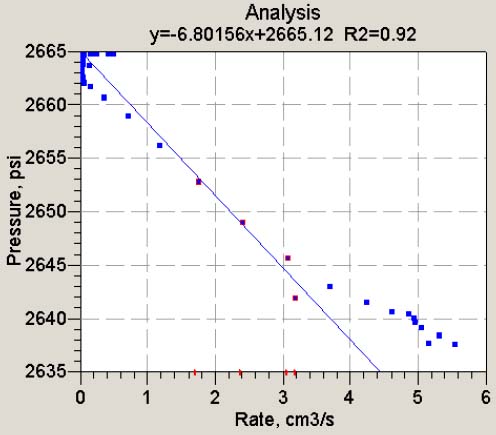

Tic Display	Irregular and interval region support

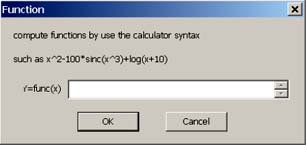

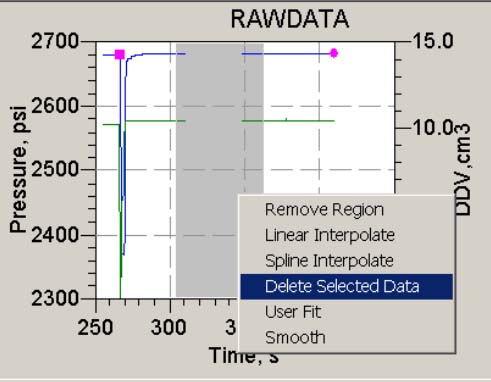

Data deletion	User-entered functions in calculator syntax

Axis

• Support linear and log scale.
• User can use default or specify custom setting for all axis: scale, starting position, axis label, fond, tick type, reverse, or hide the axis on your graph plot.
• Both vertical and horizontal axis can be reversed.
• Label could be on left or right side, and have compatibility with user defined properties, such as date and time, annotation etc.
• Each axis of graph has its individual major grid, minor grid or both.
• User can edit grids’ color, weight, and style as they need

•
  Log scale axes



  Axis property modification screen



Language support

• Support multiple languages, such as: English, Chinese, Spanish …

Environment

• Any environment that supports ActiveX
• Design time and real time support
• End-user and developer usage
